Extended MessageBox function - Updated ! - change button captions, main icon, disable buttons

Updated version - Now allowing changing icons and disabling buttons

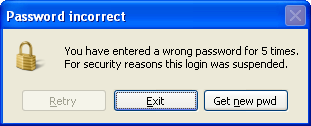

lnOption = MsgboxEx( ;
   "You have entered a wrong password for 5 times." + chr(13) + ;
   "For security reasons this login was suspended.", ; && main message
   0, ; && default icon info
   "Password incorrect", ; && title bar caption
   "\&Retry,&Exit,Get &new pwd", ; && new button captions
   "41.ico") && icon file

This is a simple function that allows us to customize the captions of buttons of the messagebox() dialog window, like in the image shown above.

Thanks to Mike gagnon and Anatolyi Mogylevetz, here's an updated version of the version that allows to change the icon and also to disable the buttons.

Basically I followed Anatolyi's instructions to allow disabling the buttons. Changing the dialog icon was also very simple, with a short research in his great site - Using Win32 functions in Visual Foxpro .

I just adapted a sample provided by Craig Boyd in his blog article - Bindevent on steroids using the VFPEX.FLL that he created and kindly provided in that article. Please refer to the original article for more details.

I called it MSGBOXEX.PRG, and it can be used very simply, to obtain the result below - notice the 4th parameter, that contains the captions of the buttons to be used, delimited by a comma:

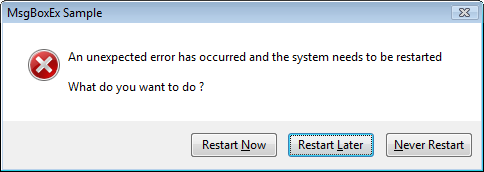

lnOption = MsgboxEx(;
   "An unexpected error has occurred and the system needs to be restarted." + ;
   chr(13) + chr(13) + "What do you want to do ?", ;
   "X", ;
   "MsgboxEx sample", ;
   "Restart &Now,Restart &later,&Never restart")

lnOption = MsgboxEx( ;
   "Could not find the file 'Import.csv' in the selected folder.", ;
   0, ;
   "File not found", ;
   "&Abort,\&Retry,Change folder", ;
   "17.ico")

function: MsgboxEx.prg

description: Modifies the captions of messagebox buttons

parameters:

• tcCaption - the text that appears in the dialog box.


• tnIcon - the icon sign - can be numeric, using the default messagebox() icon values or character:
     - stop sign: 16 or "x"
     - question mark: 32 or "?"
     - exclamation point: 48 or "!"
     - information: 64 or "i"


• tcTitle - the text that appears in the title bar of the dialog box


• tcButtons - the captions to be used in the buttons using the comma "," delimiter
  use the "&" character to determine the hotkeys to be used - eg: "option&1,option&2,option&3" - the "\" backslash can be used to show the current button disabled.


• tcIconFile - (optional) the icon image file

returns: The index number according to the option selected - eg. returns the value 3 if the 3rd button was selected.


pros:

• use the same dialog interface from the messagebox() function, allowing us to easilly customize existing dialog boxes.

• almost the same structure of parameters of the original function

• behaves correctly in all operating systems.

• allows hotkeys (thanks to thiago takehana for reminding about this possibility)

cons:

• up to 3 buttons are allowed

• size of buttons is limited to the original messagebox() buttons size, not allowing big sized buttons.

lparameters tccaption, tnicon, tctitle, tcbuttons, tciconfile
* msgboxex.prg
* description: modifies the captions of messagebox buttons
* prerequisites: needs vfpex.fll by craigboyd
* http://www.sweetpotatosoftware.com/spsblog/ct.ashx?id=f7644db8-b155-4d43-8216-4cfde233edb7&url=http%3a%2f%2fwww.sweetpotatosoftware.com%2ffiles%2fvfpex.zip
* more info about vfpex.fll
* http://www.sweetpotatosoftware.com/spsblog/2005/08/07/bindeventonsteroids.aspx
* parameters:
* tccaption - the text that appears in the dialog box.
* tnicon - the icon sign
* tctitle - the text that appears in the title bar of the dialog box
* tcbuttons - the captions to be used in the buttons using the comma "," delimiter
* use the "&" character to determine the hotkeys to be used - eg: "option&1,option&2,option&3"
* use a "\" to disable the button
* tciconfile - the icon file to replace the default from messagebox()
* returns: the index number according to the option selected - eg. returns the value 3 if the 3rd button was selected.
* sample:
* =msgboxex("this is a common text", "!", "window title", "option1,option2,option3")
if vartype(tntimeout) = "C" and (pcount() = 4)
   tcbuttons = tntimeout
   tntimeout = 0
endif

private pnbuttoncnt, pcbuttons, pnbutttype, pciconfile, phicon
pciconfile = iif(empty(tciconfile),"", tciconfile)
pnbuttoncnt = getwordcount(tcbuttons, ",")
pcbuttons = tcbuttons
*!* stop 16
*!* question 32
*!* exclamation 48
*!* info 64
if vartype(tnicon) = "c"
   tnicon = upper(tnicon)
   do case
   case tnicon = "X"
      tnicon = 16
   case tnicon = "?"
      tnicon = 32
   case tnicon = "!"
      tnicon = 48
   case tnicon = "I"
      tnicon = 64
   otherwise
      tnicon = 0
   endcase
endif

* check if an icon will be shown
* if an icon file was passed, we need to ensure that messagebox() will
* show an icon, that will be changed further.

#define image_bitmap 0
#define image_icon 1
#define lr_loadfromfile 0x0010
#define lr_defaultsize 0x0040
phicon = 0
if not empty(pciconfile) and ;
   (not (bittest(tnicon, 4) or bittest(tnicon, 5) or bittest(tnicon, 6)))
   tnicon = tnicon + 16
   phicon = xmbloadimage(0, fullpath(pciconfile), image_icon,;
0,0, lr_loadfromfile + lr_defaultsize)
endif


* windows hook constants
#define wh_cbt 5

* set library so bindeventex and unbindeventex can be used in vfp
local lcoldsetlib
lcoldsetlib = set("library")
set library to (locfile("vfpex.fll"))
bindeventex('wineventhandler()', wh_cbt) && setwindowshookex

* this messagebox will be modified before it is shown
local lnoption, lnindex
do case
case pnbuttoncnt = 1
   pnbutttype = 0 && ok
case pnbuttoncnt = 2
   pnbutttype = 4 && yes / no
case pnbuttoncnt = 3
   pnbutttype = 2 && abort / retry / ignore
otherwise
endcase

lnoption = messagebox(tccaption, tnicon + pnbutttype, tctitle)

local lnoffset
lnoffset = icase(pnbuttoncnt = 3, 2, pnbuttoncnt = 2, 5 , 0)
lnindex = lnoption - lnoffset

if phicon <> 0
   =xmbdeleteobject(phicon) && clear icon handle
endif

if not empty(lcoldsetlib)
   set library to (lcoldsetlib)
endif
return lnindex




procedure wineventhandler
#define dlg_ctrlid_icon 0x0014
#define stm_seticon 0x0170
#define stm_setimage 0x0172
if ncode == 5
   if not empty(phicon)
      * changing the dialog icon
      local lhiconwindow
      lhiconwindow = xmbgetdlgitem(wparam, dlg_ctrlid_icon)
      if lhiconwindow <> 0
         if phicon <> 0
            =xmbsendmessage(lhiconwindow, stm_seticon, phicon, 0)
         endif
      endif
   endif

   * change button attributes
   local n, lnoffset, lccaption
   lnoffset = icase(pnbuttoncnt = 3, 2, pnbuttoncnt = 2, 5 , 0)
   for n = 1 to pnbuttoncnt
      lccaption = getwordnum(pcbuttons, n, ",")
      * disable current button
      if left(lccaption, 1) = "\"
         lccaption = substr(lccaption, 2) && get the rest of the string
         local lnbtnhwnd
         lnbtnhwnd = xmbgetdlgitem(wparam, lnoffset + n)
         =xmbenablewindow(lnbtnhwnd, 0)
      endif

      * change the caption
      =xmbsetdlgitemtext(wparam, lnoffset + n, lccaption)
   endfor

   =xmbcallnexthookex(hhook, ncode, wparam, lparam) && all 4 variables exist
   unbindeventex()
else
   =xmbcallnexthookex(hhook, ncode, wparam, lparam) && all 4 variables created by fll
endif

release ncode, wparam, lparam, hhook
endproc



*********************************************************************
function xmbsetdlgitemtext(hdlg, niddlgitem, lpstring)
*********************************************************************
declare integer SetDlgItemText in user32 as xmbsetdlgitemtext ;
   long hdlg,;
   long niddlgitem,;
   string lpstring
return xmbsetdlgitemtext(hdlg, niddlgitem, lpstring)
endfunc

*********************************************************************
function xmbcallnexthookex(hhook, ncode, wparam, lparam)
*********************************************************************
declare long CallNextHookEx in user32 as xmbcallnexthookex ;
   long hhook, long ncode, long wparam, long lparam
return xmbcallnexthookex(hhook, ncode, wparam, lparam)
endfunc

*********************************************************************
function xmbgetdlgitem(hdlg, niddlgitem)
*********************************************************************
* hdlg [in] handle to the dialog box that contains the control.
* niddlgitem [in] specifies the identifier of the control to be retrieved.
* http://msdn.microsoft.com/en-us/library/ms645481(vs.85).aspx
declare integer GetDlgItem in user32 as xmbgetdlgitem ;
   long hdlg,;
   long niddlgitem
return xmbgetdlgitem(hdlg, niddlgitem)
endfunc

*********************************************************************
function xmbenablewindow(hwnd, fenable)
*********************************************************************
declare integer EnableWindow in user32 as xmbenablewindow integer hwnd, integer fenable
return xmbenablewindow(hwnd, fenable)
endfunc

*********************************************************************
function xmbsendmessage(hwindow, msg, wparam, lparam)
*********************************************************************
* http://msdn.microsoft.com/en-us/library/bb760780(vs.85).aspx
* http://www.news2news.com/vfp/?group=-1&function=312
declare integer SendMessage in user32 as xmbsendmessage;
   integer hwindow, integer msg,;
   integer wparam, integer lparam
return xmbsendmessage(hwindow, msg, wparam, lparam)
endfunc

*********************************************************************
function xmbloadimage(hinst, lpszname, utype, cxdesired, cydesired, fuload)
*********************************************************************
declare integer LoadImage in user32 as xmbloadimage;
   integer hinst,;
   string lpszname,;
   integer utype,;
   integer cxdesired,;
   integer cydesired,;
   integer fuload
return xmbloadimage(hinst, lpszname, utype, cxdesired, cydesired, fuload)
endfunc


*********************************************************************
function xmbdeleteobject(hobject)
*********************************************************************
declare integer DeleteObject in gdi32 as xmbdeleteobject integer hobject
return xmbdeleteobject(hobject)
endfunc

download the vfpex.fll here, created by craig boyd, directly from the sps weblog.
download the MessageboxEx function

History:

2009-10-19 original version (change captions)
2009-10-23 updated, allowing icon change and disabling buttons



Technorati: MessageBox, VFPEX.FLL, Extended MessageBox, Windows BindEvent

A GdiPlusX analog clock

After I posted a Gauge sample with gdiplusx some months ago, Rafael Lippert from Brazil adapted my original code and created this cool analog watch, using GdiplusX and the 'ImageCanvas' class:

Cool isn't it ? it permits many customizations, and you may use it as a sample to learn other GdiplusX techniques.

You may get it directly from Rafael' blog, at: http://rafaellippert.wordpress.com/2011/06/21/a-gdiplusx-analog-clock/

It's worth to spend some time in Rafael's blog and website - www.lipsil.com.br . I'm sure you'll find some really very neat utilities.

Draw rounded rectangles with GdiPlusX

Bob Powell, in his great website site says: "the trick here is to use a GraphicsPath object to assemble a collection of  lines and arcs that make up the rounded rectangle shape.

Arcs are used to round off the corners, so you have to position the lines 1 radius, whatever that may be, from the actual corner."


The code below shows Bob's function converted to VFP and GdiPlusX, to obtain this result:

LOCAL loBmp AS xfcBitmap, loGfx AS xfcGraphics
WITH _SCREEN.SYSTEM.Drawing AS xfcDrawing
 * create a New Bitmap
 loBmp = .Bitmap.New(200,170)
 * get a Graphics object for Drawing
 loGfx = .Graphics.fromImage(loBmp)
 * clear the Drawing canvas
 loGfx.CLEAR(.COLOR.LightCoral)
 * Draw the rounded rectangle
 =DrawRoundRect(loGfx, .Pens.blue, 20, 30, 150, 100, 20)
 * save image to file
 loBmp.SAVE("roundedrect.png", .Imaging.ImageFormat.Png)
ENDWITH
RUN /N explorer.EXE RoundedRect.png



FUNCTION DrawRoundRect(toGfx AS xfcGraphics, toPen AS xfcPen, ;
  tnX, tnY, tnWidth, tnHeight, tnRadius)
 * adapted by cesar from bob powell's sample taken from
 * http://www.bobpowell.net/roundrects.htm

 LOCAL logPath AS xfcGraphicsPath
 logPath = _SCREEN.SYSTEM.Drawing.Drawing2d.GraphicsPath.New()

 WITH logPath
  .AddLine(tnX + tnRadius, tnY, tnX + tnWidth - (tnRadius*2), tnY)
  .AddArc(tnX + tnWidth - (tnRadius*2), tnY, tnRadius*2, tnRadius*2, 270, 90)
  .AddLine(tnX + tnWidth, tnY + tnRadius, tnX + tnWidth, tnY + tnHeight - (tnRadius*2))
  .AddArc(tnX + tnWidth - (tnRadius*2), tnY + tnHeight - (tnRadius*2), tnRadius*2, tnRadius*2,0,90)
  .AddLine(tnX + tnWidth - (tnRadius*2), tnY + tnHeight, tnX + tnRadius, tnY + tnHeight)
  .AddArc(tnX, tnY + tnHeight - (tnRadius*2), tnRadius*2, tnRadius*2, 90, 90)
  .AddLine(tnX, tnY + tnHeight - (tnRadius*2), tnX, tnY + tnRadius)
  .AddArc(tnX, tnY, tnRadius*2, tnRadius*2, 180, 90)
  .closefigure()
 ENDWITH
 toGfx.DrawPath(toPen, logPath)
ENDFUNC

The above function receives a xfcPen object to draw the rounded rectangle. In order to draw a filled rounded rectangle, all we need is to add a small tweak in the above function to use a brush object instead a pen, and call the FillPath function instead of DrawPath.

Drawing shapes using the PolyPoints property

vfp9 brought a new property that allows us to draw all kinds of shapes, without the need of any external component, even a single windoes api call.

according to the vfp9 help, the polypoints property of the shape control "specifies an array of coordinates for creating polygon shapes using the shape control and polygon lines using the line control. read/write at design time and run time. for shape controls, polypoints creates a polygon shape."

mvp luis maria guayan from argentina already did an amazing job using the polypoints property, in 2 articles.

dibujando polígonos con vfp 9.0 - a simple article with some samples showing how we can draw a traiangle and an ogtogon. the article is in spanish, but it is very simple to run the provided samples and reproduce the proposed result.

the 2nd one, gráficas con objetos 100% vfp, is a real masterpiece, where he uses the polypoints property to create chart shapes, providing a very nice charting tool. download the source code and play with the samples, amazing !



using the polypoints property we can also draw rounded shapes, pie slices, circles and ellipses.

create an empty form, size it the way you like, and paste the following code to the init() event, to reproduce the shape below:

thisform.addobject("shape1", "shape")
* add a shape object to the current form
* and set some basic properties
local loshape as shape
loshape = thisform.shape1
loshape.width = thisform.width
loshape.height = thisform.height
loshape.anchor = 15 && resize width and height
loshape.backcolor = rgb(255,0,0)
loshape.polypoints = "apoly" && array of points
loshape.visible = .t.

* defining the polypoints array
* change the values of lnstart and lnfinal to determine
* the angle of the pie slice
local lnstart, lnfinal, lnsweep, n, lnradius, lnangle
lnstart = 0
lnfinal = 360
lnsweep = lnfinal - lnstart
lnradius = 50

public apoly(lnsweep + 2, 2)
for n = 1 to lnsweep + 1
   lnangle = lnstart + n - 1
   apoly(n,1) = (lnradius * cos(dtor(lnangle)) + lnradius)
   apoly(n,2) = (lnradius * sin(dtor(lnangle)) + lnradius)
endfor

if lnsweep = 360 && closed ellipse, so dont draw the center point
   apoly(n,1) = apoly(n-1,1)
   apoly(n,2) = apoly(n-1,2)
else
   * determine the center point
   apoly(n,1) = lnradius
   apoly(n,2) = lnradius
endif



to obtain pie slices, just change the values of the variables lnstart and lnfinal, to determine the starting and ending angle.

here's the result if you use:

lnstart = 90
lnfinal = 210



the very cool feature of polypoints is that it generates vectorial pictures. you can resize the form the way you like, and you'll see your shape changing accordingly. all i did for that purpose was to setup the property anchor to the value 15 (resize width and height).



Change the shape of your pictures with GdiPlusX

The samples below use the Graphics.SetClip function to draw shaped borders in your pictures.

The trick here is to use the CombineMode.Xor enumeration, that forces the drawing to the external part of the shape, like in the samples below.

We'll be playing with the source image below:

Prerequisites
Visual FoxPro 9 and the GdiplusX library from VFPX

Sample 1: Ellipse Shape

DO LOCFILE("System.App") WITH _SCREEN.SYSTEM.Drawing * get an image file LOCAL loBmp AS xfcBitMap m.loBmp = .BITMAP.FromFile(GETPICT()) * create a gfx object that will allow us to make the transformation LOCAL loGfx AS xfcGraphics m.loGfx = .Graphics.FromImage(m.loBmp) LOCAL lnWidth, lnHeight m.lnWidth = m.loBmp.WIDTH m.lnHeight = m.loBmp.HEIGHT * create graphicsPath object. LOCAL loClipPath AS xfcGraphicsPath m.loClipPath = .Drawing2d.GraphicsPath.New() * an Ellipse shape m.loClipPath.AddEllipse(0, 0, m.lnWidth, m.lnHeight) * set Clipping region to Path. * CombineMode enumeration * http://msdn.microsoft.com/en-us/library/system.Drawing.Drawing2d.CombineMode.aspx * CombineMode.xor - two Clipping regions are combined by taking only the areas * enclosed by one or the other region, but not both. m.loGfx.SetClip(m.loClipPath, ; _SCREEN.SYSTEM.Drawing.Drawing2d.CombineMode.xor) * fill Rectangle to demonstrate Clipping region. m.loGfx.FillRectangle( .Brushes.White, 0, 0, m.loBmp.WIDTH, m.loBmp.HEIGHT) * save the image to the disk and show m.loBmp.SAVE("Clipped.jpg", "image/jpeg") RUN /N Explorer.EXE Clipped.jpg ENDWITH

Sample 2: Doughnut Shape

DO LOCFILE("System.App")
WITH _SCREEN.SYSTEM.Drawing
 * get an image file
 LOCAL loBmp AS xfcBitMap
 m.loBmp = .BITMAP.FromFile(GETPICT())
 * create a gfx object that will allow us to make the transformation
 LOCAL loGfx AS xfcGraphics
 m.loGfx = .Graphics.FromImage(m.loBmp)
 LOCAL lnWidth, lnHeight
 m.lnWidth  = m.loBmp.WIDTH
 m.lnHeight = m.loBmp.HEIGHT

 * create graphicsPath object.
 LOCAL loClipPath AS xfcGraphicsPath
 m.loClipPath = .Drawing2d.GraphicsPath.New()


 * a doughnut slice shape
 m.loClipPath.AddEllipse(0, 0, m.lnWidth, m.lnHeight * 2)
 m.loClipPath.AddEllipse(m.lnWidth / 4, m.lnHeight / 2, m.lnWidth / 2, m.lnHeight * 4)


 * set Clipping region to Path.
 * CombineMode enumeration
 * http://msdn.microsoft.com/en-us/library/system.Drawing.Drawing2d.CombineMode.aspx
 * CombineMode.xor - two Clipping regions are combined by taking only the areas
 * enclosed by one or the other region, but not both.
 m.loGfx.SetClip(m.loClipPath, ;
    _SCREEN.SYSTEM.Drawing.Drawing2d.CombineMode.xor)
 * fill Rectangle to demonstrate Clipping region.
 m.loGfx.FillRectangle( .Brushes.White, 0, 0, m.loBmp.WIDTH, m.loBmp.HEIGHT)
 * save the image to the disk and show
 m.loBmp.SAVE("Clipped.jpg", "image/jpeg")
 RUN /N Explorer.EXE Clipped.jpg
ENDWITH

Sample 3: Star Shape

DO LOCFILE("System.App")
WITH _SCREEN.SYSTEM.Drawing
 * get an image file
 LOCAL loBmp AS xfcBitMap
 m.loBmp = .BITMAP.FromFile(GETPICT())
 * create a gfx object that will allow us to make the transformation
 LOCAL loGfx AS xfcGraphics
 m.loGfx = .Graphics.FromImage(m.loBmp)
 LOCAL lnWidth, lnHeight
 m.lnWidth  = m.loBmp.WIDTH
 m.lnHeight = m.loBmp.HEIGHT

 * create graphicsPath object.
 LOCAL loClipPath AS xfcGraphicsPath
 m.loClipPath = .Drawing2d.GraphicsPath.New()



 * source for the star Drawing
 * http://www.java2s.com/code/vb/2d/graphicsPathdrawwithfillmodewinding.htm
 LOCAL lnRadius, lnpi, lnRadian72, N, lnEdges
 m.lnRadius  = m.lnHeight / 2
 m.lnpi   = 3.141592
 m.lnEdges  = 5
 m.lnRadian72 = (m.lnpi * 4.0 ) / m.lnEdges
 LOCAL laPoints(lnEdges)
 FOR m.N = 1 TO m.lnEdges
  m.laPoints(m.N) = .Point.New( ;
     + m.lnRadius * SIN( m.N * m.lnRadian72 ) + m.lnRadius, ;
     - m.lnRadius * COS( m.N * m.lnRadian72 ) + m.lnRadius )
 ENDFOR
 m.loClipPath.AddPolygon(@m.laPoints)
 * set the Clip mode to winding
 * Clipmode enumeration
 *http://msdn.microsoft.com/en-us/library/system.Drawing.Drawing2d.Fillmode.aspx
 m.loClipPath.Fillmode = _SCREEN.SYSTEM.Drawing.Drawing2d.Fillmode.winding

 * set Clipping region to Path.
 * CombineMode enumeration
 * http://msdn.microsoft.com/en-us/library/system.Drawing.Drawing2d.CombineMode.aspx
 * CombineMode.xor - two Clipping regions are combined by taking only the areas
 * enclosed by one or the other region, but not both.
 m.loGfx.SetClip(m.loClipPath, ;
    _SCREEN.SYSTEM.Drawing.Drawing2d.CombineMode.xor)
 * fill Rectangle to demonstrate Clipping region.
 m.loGfx.FillRectangle( .Brushes.White, 0, 0, m.loBmp.WIDTH, m.loBmp.HEIGHT)
 * save the image to the disk and show
 m.loBmp.SAVE("Clipped.jpg", "image/jpeg")
 RUN /N Explorer.EXE Clipped.jpg
ENDWITH

Notice that the only difference between the code samples is the shape definition !

Circular Gauge chart with GdiPlusX

Drawing shapes with gdiplusx is super easy, and we can very easilly transport this to solve some of our chart needs.

Here we have a very primitive sample for creating circular gauge charts. Obviously I hope to apply the techniques shown here in FoxCharts. But FoxCharts is getting big, and I confess that learning from the methods in FoxCharts may not be easy for people that are not that familiar with GdiPlusX.

This is an unfinished sample. I'm posting it here to let people see that drawing is not that complicated. Just using some imagination, merging it with some geometrical thoughts, and voilá !

Download the gauge sample, unzip and run testgauge.scx ! I'm including the GdiplusX sources to let everybody immediately run the samples.

Notice that you can control the colors of the background and pointer.

The pointer shape can be modified too. Play with all the spinners to modify the shape and size!

Below is the relevant code for the circular gauge drawing. You'll find it in the "beforedraw()" event of the ImageCanvas class. It extracts the information from the form controls, and it's very easy to adapt it to your needs.

LOCAL lnangle, lnbasew, lnbasex, lnbasey, lntopw, lnheightpercent, lntopy
LOCAL lntype, lnpointclr, lnbackclr, lnticks
lnticks = Thisform.spnticks.VALUE
lntype = Thisform.optshape.VALUE
lnangle = Thisform.spnangle.VALUE
lnbasew = Thisform.spnbottomw.VALUE
lntopw = Thisform.spntopw.VALUE
lnbasex = This.WIDTH/2 -lnbasew/2
lnbasey = This.HEIGHT/2
lnheightpercent = Thisform.spnheight.VALUE / 100
lntopy = lnbasey - (lnbasey * lnheightpercent) + lntopw / 2
lnpointclr = Thisform.shppointercolor.BACKCOLOR
lnbackclr = Thisform.shpbackcolor.BACKCOLOR
LOCAL logfx AS xfcgraphics
logfx = This.ogfx

WITH _SCREEN.SYSTEM.drawing
 LOCAL lobrush AS xfcsolidbrush
 lobrush = .solidbrush.new(.COLOR.fromrgb(lnpointclr))

 logfx.CLEAR(.COLOR.fromrgb(Thisform.BACKCOLOR))

 * create a shape for the pointer
 LOCAL lopath AS xfcgraphicspath
 lopath = .drawing2d.graphicspath.new()
 lopath.startfigure()
 logfx.fillellipse(.solidbrush.new(.COLOR.fromrgb(lnbackclr)), ;
  This.rectangle)

 IF lntype = 1
  lopath.addarc(lnbasex, This.HEIGHT/2 -lnbasew/2, lnbasew, lnbasew, 0, 180)
 ENDIF

 lopath.ADDLINE(lnbasex, lnbasey, This.WIDTH/2 - lntopw/2, lntopy)
 IF lntype = 1
  LOCAL lapoints(3)
  lapoints(1) = .POINT.new(This.WIDTH/2 - lntopw/2, lntopy)
  lapoints(2) = .POINT.new(This.WIDTH/2 , lntopy - lntopw / 2)
  lapoints(3) = .POINT.new(This.WIDTH/2 + lntopw/2, lntopy)
  lopath.addcurve(@lapoints)
 ENDIF

 lopath.ADDLINE( This.WIDTH/2 + lntopw/2, lntopy, lnbasex + lnbasew, lnbasey)
 lopath.closefigure()

 * rotate the shape pointer
 logfx.translatetransform(This.WIDTH/2, This.HEIGHT/2)
 logfx.rotatetransform(lnangle)
 logfx.translatetransform(- This.WIDTH/2, - This.HEIGHT/2)

 * draw the pointer
 logfx.fillpath(lobrush, lopath)

 * restore the original gfx rotation state
 logfx.resettransform()

 IF lnticks > 0
  FOR lnangle = 0 TO 360 STEP 360 / lnticks

   * rotate the gfx
   logfx.translatetransform(This.WIDTH/2, This.HEIGHT/2)
   logfx.rotatetransform(lnangle)
   logfx.translatetransform(- This.WIDTH/2, - This.HEIGHT/2)

   * draw the ticks
   logfx.drawline(.pens.black, This.WIDTH/2, 0, This.WIDTH/2, 10)

   * restore the original gfx rotation state
   logfx.resettransform()
  ENDFOR
 ENDIF

ENDWITH

Drawing Unicode texts with GdiPlusX

It's really very simple to draw Unicode texts with GdiPlusX:

We'll use the function "drawstringw", that is just an adapted version from the original xfcgraphics.drawstring function.

It accepts the same parameters and overloads from the original function - the sole difference is the first parameter that was introduced - the graphics object.

Another helper function - "hextounicode" was introduced. It converts a string containing hex values separated by a space into the unicode needed by gdiplus.dll to draw the string.

Just run the script and you'll obtain a result similar to the one below:

Prerequisites
Visual FoxPro 9 and the GdiPlusX library from VfpX

DO LOCFILE("System.app")

LOCAL N, x, Y, lnColor
LOCAL loBmp AS xfcbitmap, loGfx AS xfcGraphics, loFont AS xfcFont
LOCAL loBrush AS xfcsolidBrush
LOCAL laWords(9,2)

* greek
laWords(1,1) = "greek"
laWords(1,2) = "03b5 03b9 03c1 03ae 03bd 03b7"

* korean
laWords(2,1) = "korean"
laWords(2,2) = "d3c9 d654"

* hebrew
laWords(3,1) = "hebrew"
laWords(3,2) = "05e9 05dc 05d5 05dd"

* bulgarian
laWords(4,1) = "bulgarian"
laWords(4,2) = "043c 0438 0440"

* arabic
laWords(5,1) = "arabic"
laWords(5,2) = "0633 0644 0627 0645"

* simplified chinese
laWords(6,1) = "chinese"
laWords(6,2) = "548c 5e73"

* thai
laWords(7,1) = "thai"
laWords(7,2) = "0e04 0e27 0e32 0e21 0e2a 0e07 0e1a"

* russian
laWords(8,1) = "russian"
laWords(8,2) = "043c 0438 0440"

* japanese
laWords(9,1) = "japanese"
laWords(9,2) = "5e73 548c"

WITH _SCREEN.SYSTEM.Drawing
 loFont = .Font.New("tahoma", 18)
 loBmp = .BITMAP.New(350,370)
 loGfx = .Graphics.fromImage(loBmp)
 loGfx.CLEAR(.COLOR.White)
 loGfx.DrawString("gdi+x Drawing Unicodes", loFont, .Brushes.black, 10,5)

 FOR N = 1 TO 9
  Y = N * 35
  x = 160

  lnColor = RGB(RAND() * 255, RAND() * 255, RAND() * 255)
  * create a solidBrush with randomic color
  loBrush = .solidBrush.New(.COLOR.fromrgb(lnColor))

  * Draw the language Name
  loGfx.DrawString(laWords(N,1), .Font.New("tahoma", 10), .Brushes.black, 65, Y + 5)

  * Draw the text in Unicodes
  =DrawStringw(loGfx, hextoUnicode(laWords(N,2)), loFont,;
   loBrush, x, Y)
 ENDFOR

 loBmp.SAVE("testUnicodes.png", .imaging.ImageFormat.png)
ENDWITH



FUNCTION DrawStringw(togfx, ;
  tcString, toFont AS xfcFont, toBrush AS xfcBrush, tnX, tnY ;
  , toFormat AS xfcStringFormat)
 *********** tcString, toFont AS xfcFont, toBrush AS xfcBrush, toPoint AS xfcPointf ;
 , toFormat AS xfcStringFormat
 *********** tcString, toFont AS xfcFont, toBrush AS xfcBrush, toRectangle AS xfcRectanglef ;
 , toFormat AS xfcStringFormat
 LOCAL lqlayoutRect
 LOCAL lnWidth, lnHeight, loPoint AS xfcPointf, loRect AS xfcRectanglef
 LOCAL lhFormat
 STORE 0 TO lnWidth, lnHeight
 STORE NULL TO loPoint, loRect
 m.lqlayoutRect = 0h00
 ** handle overload parameters

 DO CASE
  CASE VARTYPE(tnX) = "N"
  CASE VARTYPE(tnX) = "O" AND INLIST(tnX.baseName,"Point","Pointf")
   m.loPoint = m.tnX
   m.toFormat = m.tnY
   m.loPoint.getextent(@tnX, @tnY)
  CASE VARTYPE(tnX) = "O" AND INLIST(tnX.baseName,"Rectangle","Rectanglef")
   m.loRect = m.tnX
   m.toFormat = m.tnY
   m.loRect.getextent(@tnX, @tnY, @lnWidth, @lnHeight)
 ENDCASE

 ** optional parameter
 ** the c++ classes show this parameter as null if not specified
 IF VARTYPE(m.toFormat) = "O"
  m.lhFormat = m.toFormat.handle
 ELSE
  m.lhFormat = 0
 ENDIF
 m.lqlayoutRect = BINTOC(m.tnX,"F")+BINTOC(m.tnY,"F")+;
  BINTOC(m.lnWidth,"F")+BINTOC(m.lnHeight,"F")

 =xfcgdipDrawString(togfx.handle, m.tcString+0h00, LENC(tcString)/2, ;
  m.toFont.handle, @lqlayoutRect, m.lhFormat, m.toBrush.handle)
ENDFUNC


FUNCTION HexToUnicode(tcHex)
 LOCAL N, lcHex, lcUnicode
 lcUnicode = SPACE(0)
 FOR N = 1 TO GETWORDCOUNT(tchex, SPACE(1))
  lcHex = EVALUATE("0x" + GETWORDNUM(tcHex, N, SPACE(1)))
  lcUnicode = lcUnicode + BINTOC(lcHex, "4RS")
 ENDFOR
 RETURN lcUnicode
ENDFUNC
