FoxCharts new release - with Double Y Axis

Just uploaded a new release of FoxCharts, a VFP-X project

This version brings the so asked "double Y axis" charts as the main change.
  • Multicharts with negative values that were not being drawn correctly in some situations;
  • Line charts are drawn much faster (5x faster) when drawing with line caps (with shapes in the chart intersections);
  • Other small tweaks
        https://github.com/VFPX/FoxCharts/tree/master/FoxCharts_1.37b

        Have a look at the sample "chartssample_builder_2y.scx" in the samples folder of FoxCharts
        Just some few but important comments:
        1. needs to use depth = 0 (max 2)
        2. preferrably 2 data lines, one using the left axis and the other for the 2nd
        3. set the legends to the top

        Pay attention to the new properties:
        • ChartType = 18          && the newest chart type
        • Fields(n).AxisIndex = 2 && to what axis the data will correspond (1 = default)
        • LegendPosition = 6      && top center

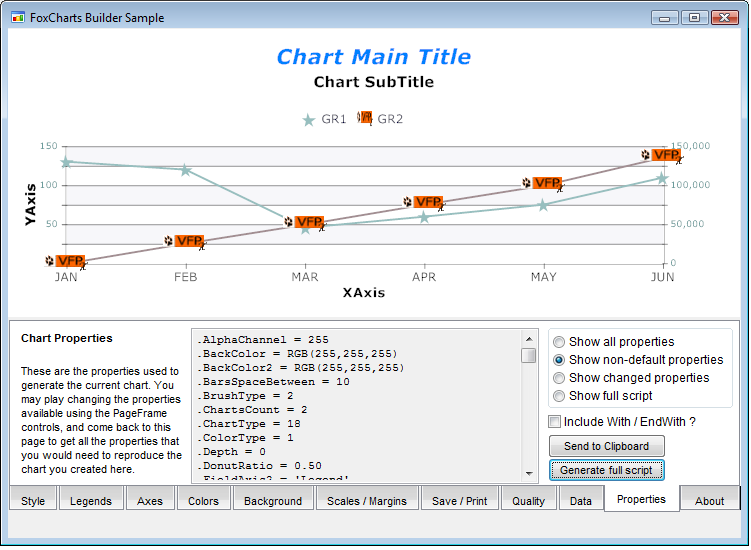

        Having this, now you are able to create a chart like this, with no effort:



        Here is a simple script showing how to achieve the chart below directly:



        create cursor sales( ;
            chart1 i null, ;
            chart2 i null, ;
            legend c (30) NULL)

        insert into sales values (130,      0, "jan")
        insert into sales values (120,  25000, "feb")
        insert into sales values ( 45,  50000, "mar")
        insert into sales values ( 60,  75000, "apr")
        insert into sales values ( 75, 100000, "may")
        insert into sales values (110, 135000, "jun")

        set classlib to locfile("foxcharts.vcx")

        public oform as form
        oform = createobject("form")
        oform.newobject("ochart","foxcharts","foxcharts.vcx")

        local loChart as Foxcharts of "foxcharts.vcx"
        loChart = oForm.oChart

        with loChart
             .Backcolor = rgb(255,255,255)
             .BrushType = 2
             .ChartsCount = 2
             .ChartType = 18
             .ColorType = 1
             .Depth = 0
             .FieldAxis2 = 'legend'
             .FieldLegend = 'legend'
             .FontName = 'verdana'
             .Height = 288
             .LegendPosition = 6
             .SourceAlias = 'sales'
             .Width = 732

             with .subtitle
                  .caption = 'chart subtitle'
             endwith

             with .title
                  .caption = 'testing 2nd y axis'
                  .forecolor = rgb(0,128,255)
             endwith

             with .fields(1)
                  .axisindex = 1
                  .color = rgb(255,0,191)
                  .fieldvalue = 'chart1'
                  .legend = 'gr1'
                  .shape = 5
             endwith
             with .fields(2)
                  .axisindex = 2
                  .color = rgb(0,142,146)
                  .fieldvalue = 'chart2'
                  .legend = 'gr2'
                  .shape = 2   && 'vfpxicon.png'
             endwith
             loChart.DrawChart()     loChart.Visible = .t.
        endwith

        oForm.Width  = loChart.Width
        oForm.Height = loChart.Height
        oForm.Show()
